A HTM200 handheld temperature monitor

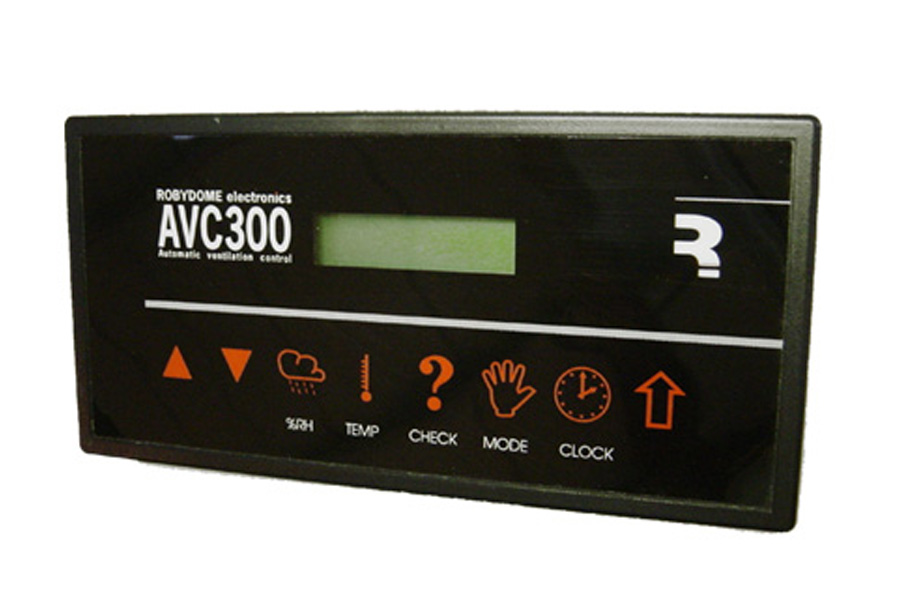

AVC300

Differential ventilation controller


The AVC300 utilizes ambient temperature and humidity as well as crop temperature probes to control the ventilation fans in a grain store. Set points allow you to control how dry the air should be as well as setting the temperature you would like the crop cooled down to. Based on these settings the AVC will bring on an off the ventilation fans when the conditions are right.

Save Time

An automatic system minimizes the time you need to spend managing the temperature in your store.

Save Money

Differential cooling saves energy as well as money by only running the ventillation fans when they will do the most good.

Suitable for Silos or floor stores

As well as push in lance probes for floor stores the AVC300 can read our TBK temperature cables designed to hang inside silos and provide temperature readings from differant hights in the silo.

Time clock

The AVC300 also includes a real time clock allowing you to set the system to take advantage of off-peak power.

Example Systems

reciever for wireless temperature probes

Ambient only

The AVC300 can be used with our range of wireless temperature probes.

reciever for wireless temperature probes

Wireless system

Designed for semi permanant sensing, the quad kit can be left in the store and daisy chained back to the HTM200.

reciever for wireless temperature probes

Multi store system

For small silos the TBK33 has 3 temperature sensors at differant points down it's length which can be easily read by the HTM200.

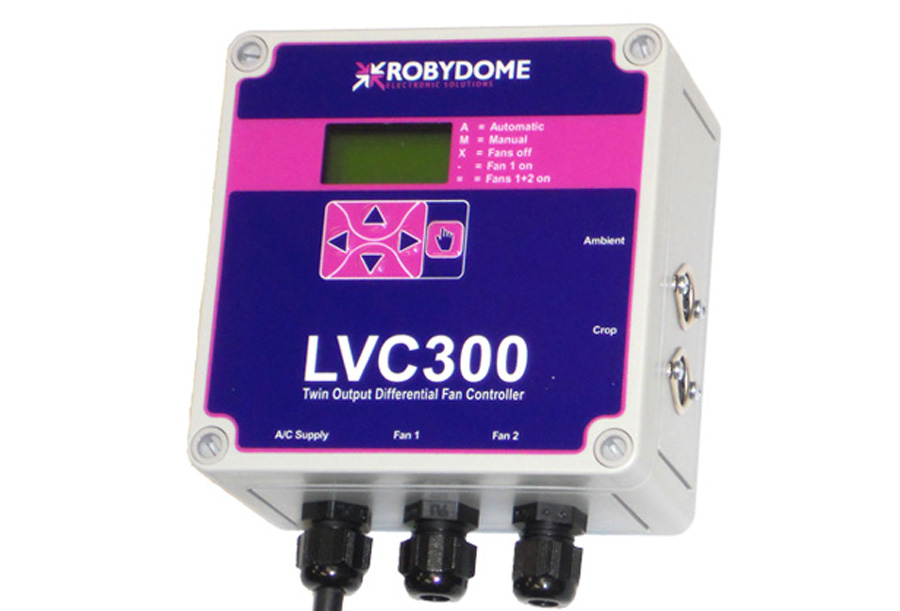

An LVC300 fan controller

LVC300

The LVC300 is a simple, low cost differential fan controller for grain stores.


Utilzing an ambient temperature probe and up to four crop probes, the LVC300 operates two 240v ac outputs to power low volume ventilation fans.

With a differential point set the LVC300 will operate the fans whenever conditions are right. The LVC300 can also work in ambient only mode where it will bring on the fans when the ambient temperature is below a set point.

Save Time

An automatic system minimises the time you need to spend managing the temperature in your store.

Save Money

Differential cooling saves energy as well as money by only running the ventilation fans when they will do the most good.

Suitable for Silos or floor stores

As well as push in lance probes for floor stores the AVC300 can read our TBK temperature cables designed to hang inside silos and provide temperature readings from different heights in the silo.

Simple to Use

The LVC300 has an easy to use interface allowing you to scroll through the crop temperatures and set the differential with just a few key presses and no complicated settings to deal with.

Example Systems

reciever for wireless temperature probes

Pedestal Fans

The LVC300 is designed with pedestal fans in mind, The 240v output allowing it to power most single phase pedestal fans directly meaning you don't have to worry about any complicated contactor panel.

reciever for wireless temperature probes

Fixed Systems

The LVC300 can be used with a more fixed installation, the multiple crop probes giving a good coverage in smaller crop stores and the twin outputs easily able to switch contactors for larger ventilation fans.

reciever for wireless temperature probes

Silo Cables

As well as push in lance probes for floor stores the LVC300 can read our range of temperature cables designed to hang inside silos and provide temperature readings from different heights in the silo.

Service

AVC300 Manual

Download the AVC300 manual here.

LVC300 Manual

Download the HTM300 manual here.

Contact Us

Contact us with any questions about our products
