Computer monitoring system
Storecheck
Storecheck systems are a robust software suite designed to meet the needs of medium to large storage sites. It features temperature and humidity monitoring, differential fan control, record keeping and alarm conditions. All in and easy to use interface, allowing you to see the status of your store at a glance.
Particularly suited to grain silos, the storecheck system interfaces with junction boxes on the top of the grain silos and collects the temperature readings from inside the silo using RTC temperature cables. Each temperature cable contains several temperature sensors spaced down its length, thus allowing the monitoring of temperature at different heights in the silo.
| Feature | HTM200 | HTM300 | LVC300 | AVC300 | Storecheck | WTM-2 |
|---|---|---|---|---|---|---|
| Remote Connection | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ |
| Reads Wired Temperature Probes | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Reads Wireless Temperature Probes | ✗ | ✓ | ✗ | ✓ | ✓ | ✓ |
| Reads Ambient Temperature | ✗ | ✗ | ✓ | ✓ | ✓ | ✓ |
| Reads Ambient Humidity | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ |
| Read upto 4 crop probes | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Reads >4 crop probes | ✗ | ✓ | ✗ | ✓ | ✓ | ✓ |
| Single Zone ventilation control | ✗ | ✗ | ✓ | ✓ | ✓ | ✓ |
| Multi Zone ventilation control | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ |
| Temperature Logging | ✗ | ✓ | ✗ | ✗ | ✓ | ✓ |
| Customisable interface | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ |
| Email temperature alarms | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ |
| Email regular reports | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ |
| Reads silo temperature cables | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Example Systems
EASY TO UNDERSTAND
The layout customised to your site and the point and click interface make for a system that is easy to use and allows you to understand what is happening with the temperatures in your stores at a glance.
CLEAN DESIGN
Designed from the ground up for the needs of grain storage, the storecheck system allows you to keep track of your store at a glance.
FOR SILOS OR FLOOR STORES
As well as Silo temperature cables Storecheck can also interface with our range of wireless receivers, allowing the use of wireless crop probes in floor stores.
EASILY EXPANDABLE
Due to the modular nature of the system, it is easy to add new silos or floor stores to the system, it just requires connecting the new modules to the system and updating the software.

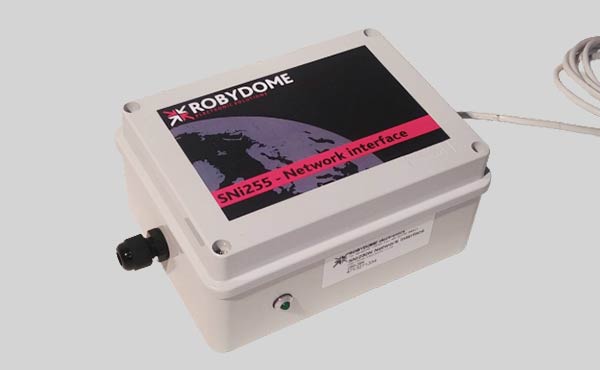

Network Interface SNi250N
The Network Interface module links any P.C. to the RS485 network.
The module also supplies processed power to the system’s electronics.
Smart Hub SDH220N
Smart Digital Hub allows the 2-wire network to split 4 ways. This simplifies wiring and greatly increases network integrity, it also allows the network to support up to 128 Smart Boxes.

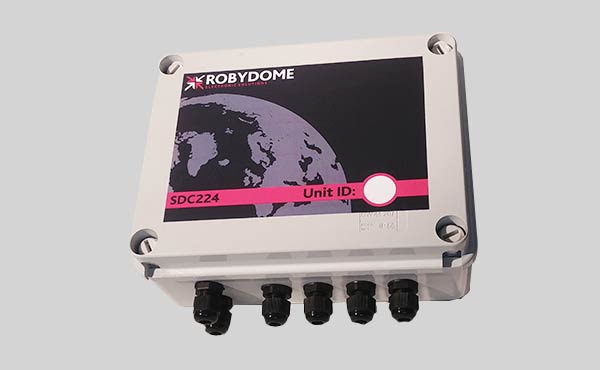

Smart Box SDC224N
Smartbox Digital multiplexer boxes use the Robylink networking system to simplify wiring and connections between sensors and the monitoring P.C. The SDC224 allows connection of up to 4 temperature cables to the RS485 network, regardless of the number of sensors per cable.
Smart Box SDC228N
Smartbox Digital multiplexer boxes use the Robylink networking system to simplify wiring and connections between sensors and the monitoring P.C. The SDC228 allows connection of up to 8 temperature cables to the RS485 network, regardless of the number of sensors per cable.
Wireless Receiver LSW-4-RE
Designed to be fitted in the roof of your store, each unit can receive temperature readings from up to 32 wireless temperature probes.
Relay Module RM4
Designed to drive external alarm signals or aeration equipment that is automatically controlled by the P.C. via the network. Modules have 4 outputs and optional status inputs to verify equipment operation.

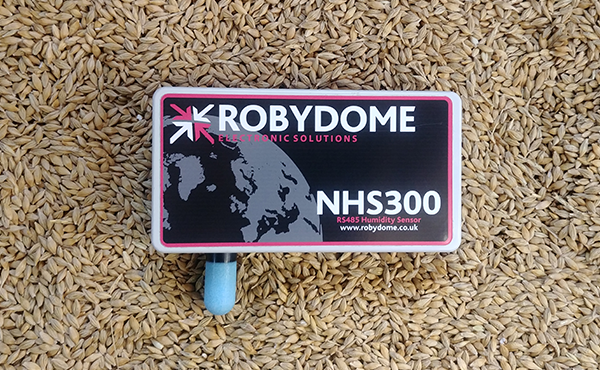

Ambient Sensor NHS300
The NHS300 ambient sensor connects to the network and provides ambient temperature and humidity readings, allowing for differential ventilation control.

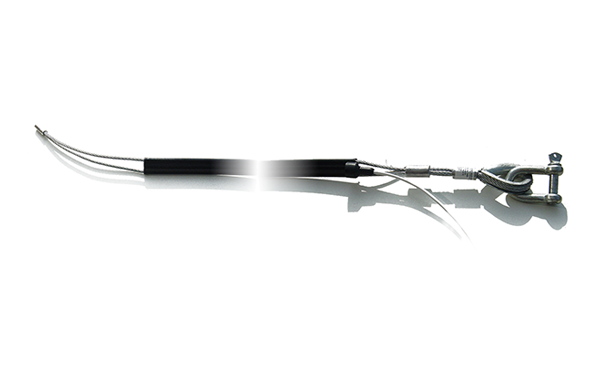

RTC Temperature Cables
Specifically designed for grain silos, the RTC temperature cable consists of a robust outer cable with an inner cable containing evenly spaced temperature sensors. This allows the reading of temperatures at different heights within the silo, giving you a better view of what is happening.
