Storecheck Systems

Storecheck systems are a robust software suite designed to meet the needs of medium to large storage sites. It features temperature and humidity monitoring, differentail fan control, record keeping and alarm conditions. All in and easy to use interface allowing you to see the status of your store at a glance.

Particularly suited to grain silos, the storecheck system interfaces with junction boxes on the top of the grain silos and collects the temperature readings from inside the silo using RTC temperature cables, each temperature cable contains several temperature sensors spaced down it's length thus alowing the monitoring of temperature at different hights in the silo.

Easy to understand

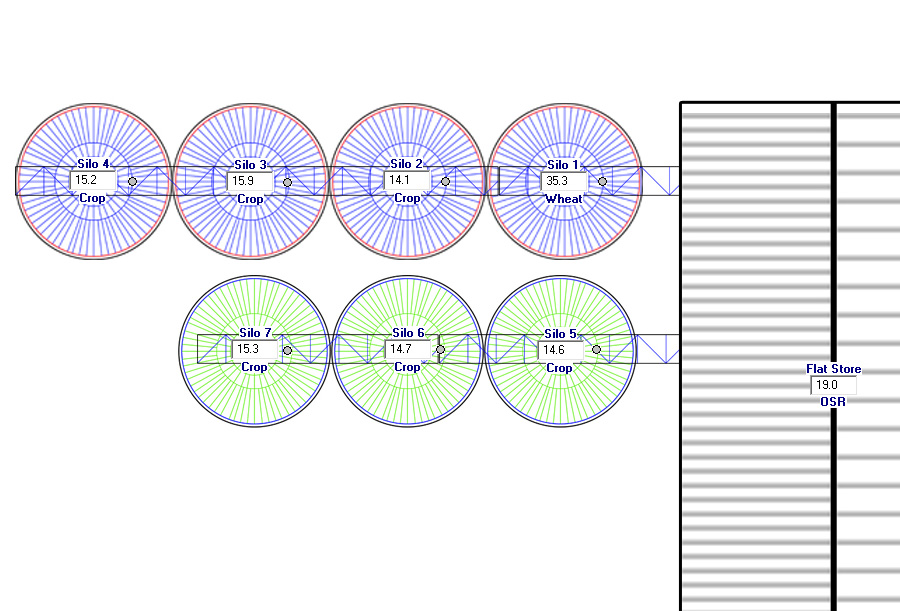

The layout customised to your site and the point and click interface make for a system that is easy to use and allows you to understand what is happening with the temperatures in your stores at a glance.

Clean design

Designed from the ground up for the needs of grain storage, the storecheck system allows you to keep track of your store at a glance.

For Silos or floor stores

As well as Silo temperature cables Storecheck can also interfave with our range of wireless recievers, allowing the use of wireless crop probes in floor stores.

Easily expandable

Due to the modular nature of the system it is easy to add new silos or floor stores to the system, it just requires connecting the new modules to the system and updating the software.

Example Systems

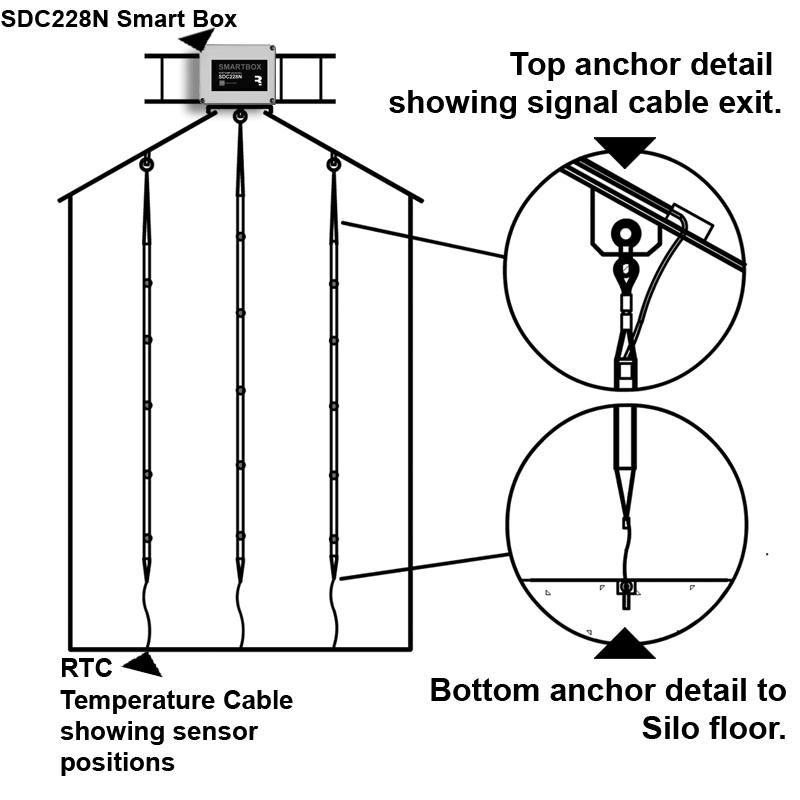

Temperature Cable Layout

The HTM200 used with an LS30 for taking spot readings.

reciever for wireless temperature probes

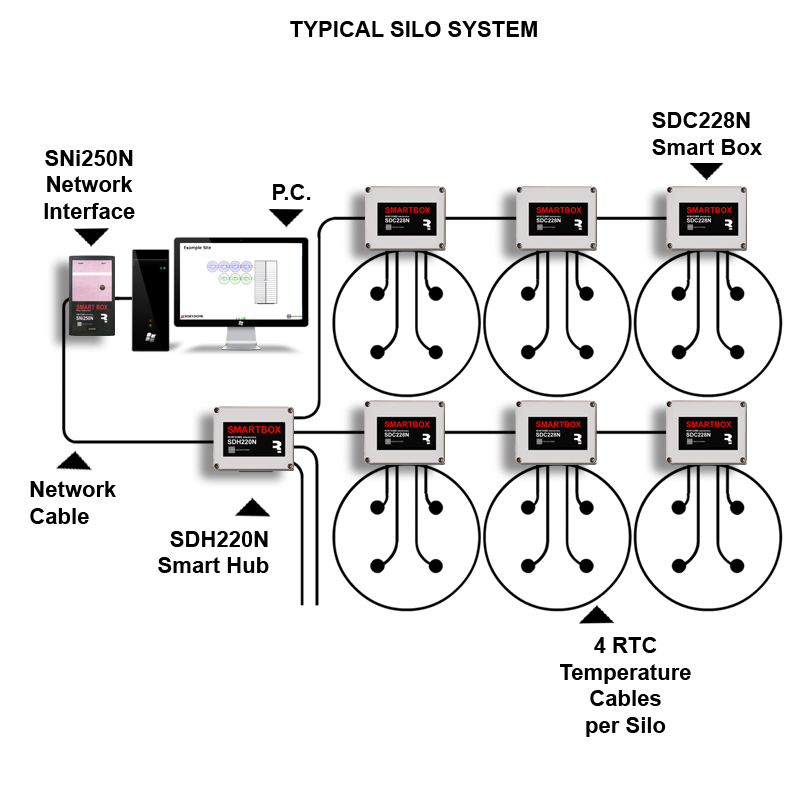

Silo complex

Designed for semi perminant sensing, the quad kit can be left in the store and daisy chained back to the HTM200.

Multi store site

For small silos the TBK33 has 3 temperature sensors at differant points down it's length which can be easily read by the HTM200.

System Componants

Network Interface SNi250N

Network Interface module links any P.C. to the RS485 network.
The module also supplies processed power to the system’s electronics.

Smart Hub SDH220N

Smart Digital Hub allows the 2 wire network to split 4 ways. This simplifies wiring and greatly increases network integrity, it also allows the network to support up to 128 Smart Boxes.

Smart Box SDC224N

Smartbox Digital multiplexer boxes use the Robylink networking system to simplify wiring and connections between sensors and the monitoring P.C. The SDC224 allows connection of up to 4 temperature cables to the RS485 network regardless of the number of sensors per cable.

Smart Box SDC228N

Smartbox Digital multiplexer boxes use the Robylink networking system to simplify wiring and connections between sensors and the monitoring P.C. The SDC228 allows connection of up to 8 temperature cables to the RS485 network regardless of the number of sensors per cable.

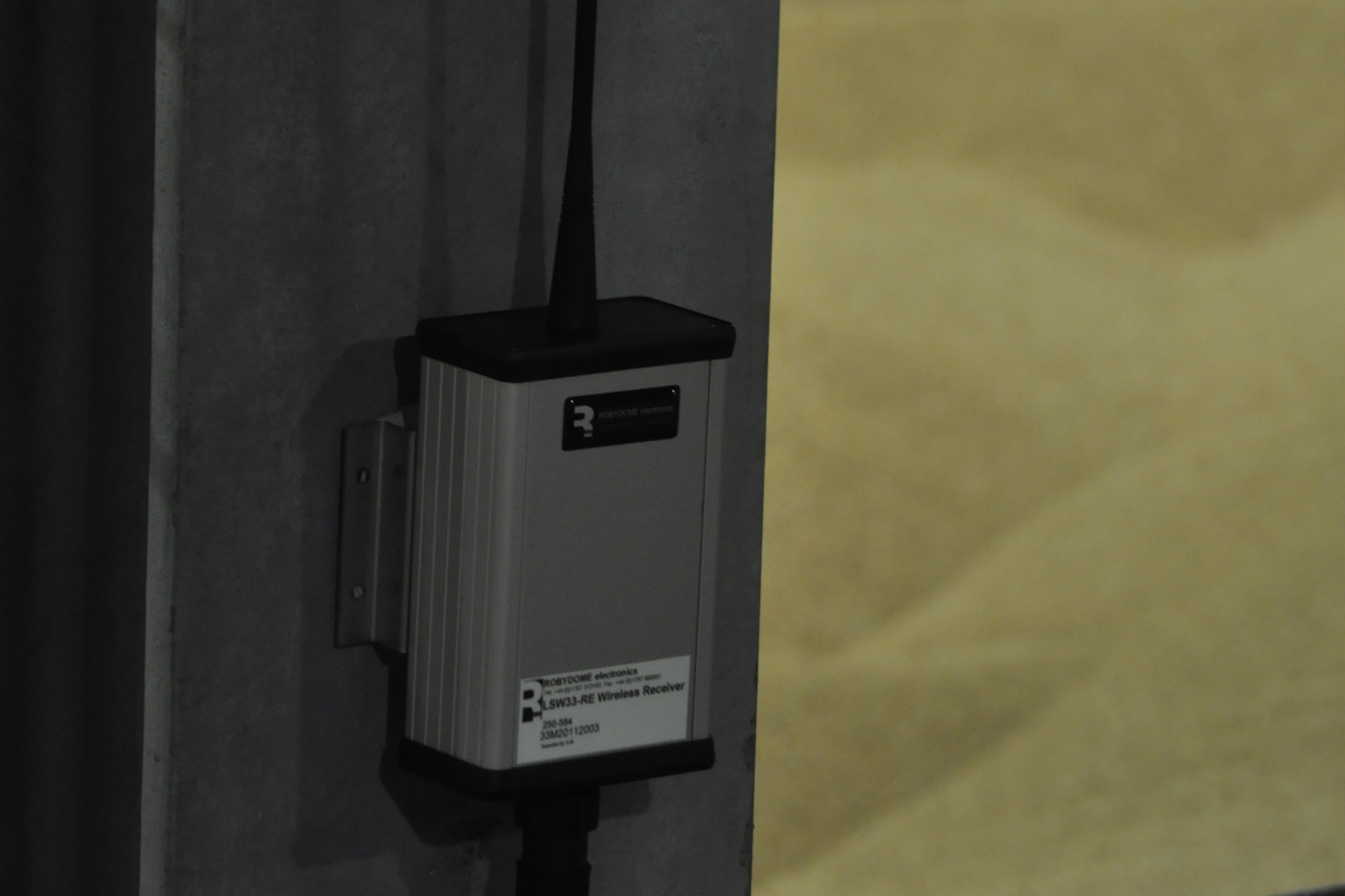

Wireless Reciever LSW33-RE

Designed to be fitted in the roof of your store, each unit can receive temperature readings from up to 32 wireless temperature probes.

Relay Module RM4

Designed to drive external alarm signals or aeration equipment being automatically controlled by the P.C. via the network. Modules have 4 outputs, and optional status inputs to verify equipment operation.

Ambient Sensor NHS300

The NHS300 ambient sensor connects to the network and provides ambient temperature and humidity readings allowing for differential ventillation control.

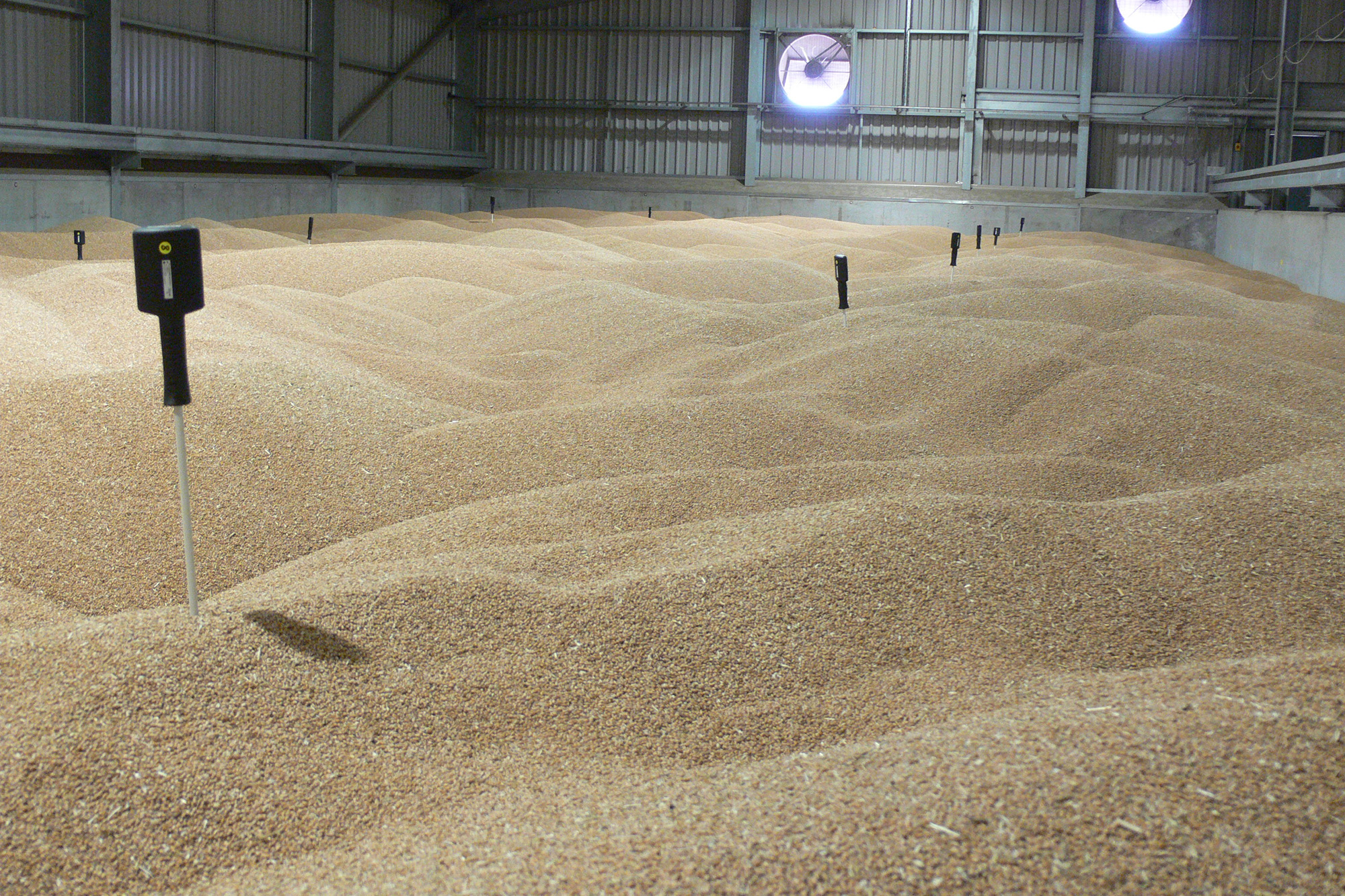

Wireless temperature probes in a grain store

RTC Temperature Cables

Specificaly designed for grain silos the RTC temperature cable consists of a robust outer cable with an inner cable containing evenly spaced temperature sensors this allows the reading of temperatures at different hights within the silo, giving you a better view of what is happening.
